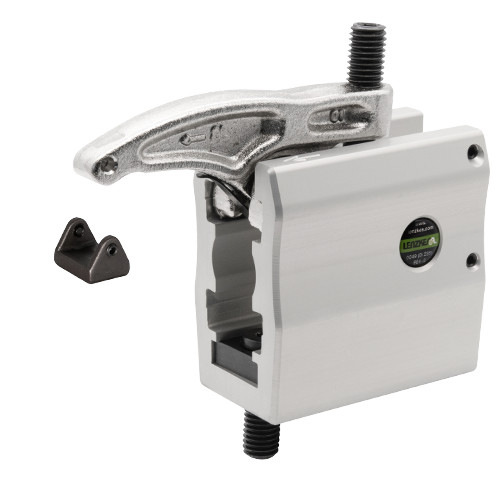

MQ 134 Series 8 134-084-12 for Tapped Holes
MQ 134 Series 8 has a clamping force of up to 20 kN. These steplessly adjustable two tier clamps provide large clamping forces via a low torque setting. High clamping range easily obtained via two adjusting levels. Clamping range: Vertical 15 - 92 mm; Horizontal 11 - 65 mm
Price: Log in For Price
Toote spetsifikatsioonid
| Type | MQ 134 Series 8 | Thickness | - |
| Thread Size | M12 | Reach | 11–55 |
| Maximum Height | 80 | Model No | MQ 134 Series 8 |
| Width | 48 | For Use With | for Tapped Holes |
| Length | 65 | Clamping Range | 15–84 |
| Holding Capacity | 20 kN |
Toote omadused
| FamilyDesc | MQ 134 Series 8 has a clamping force of up to 20 kN. These steplessly adjustable two tier clamps provide large clamping forces via a low torque setting. High clamping range easily obtained via two adjusting levels. Clamping range: Vertical 15 - 92 mm; Horizontal 11 - 65 mm | Remarks | • Stepless vertically and horizontally adjustable • Greater horizontal adjustment due to the integrated sliding plate • Greater vertical adjustment due to the two level clamping shoe • Material Clamping Arm/ Sliding plate: Hardened alloy steel and drop forged Clamping Shoe: Alumininium alloy ultrasonically tested and precision milled to protect the machine table |
