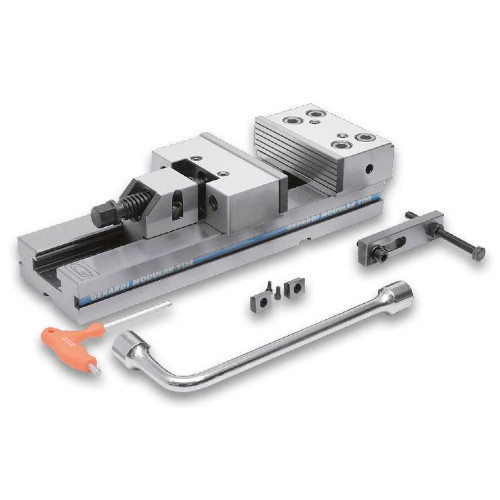

Precision modular vise with straight-plate jaws Art.14 T.6x700
Standard precision modular vise with straight-plate jaw
Price: Log in For Price
Toote spetsifikatsioonid
| Type | Standard Vises | Base Height | 78 mm |
| Jaw Width | 300 mm | Overall Height | 158 mm |
| Jaw Depth | Type6 | Product Length | 1035 mm |
| Jaw Height | 80 mm | Model No | Art. 14 |
| Jaw Opening Capacity | 700 mm | Weight | 145 kg |
| Compatible With | Standard | Maximum Clamping Force | 40 kN |
| Base Width | 195 mm |
Toote omadused
| FamilyDesc | Standard precision modular vise with straight-plate jaw | Remarks | • Precision modular vise with straight-plate jaws with holding clamps Art.298 supplied for free • Accuracy: ±0,02mm • Hardened: HRC 58±2 |
