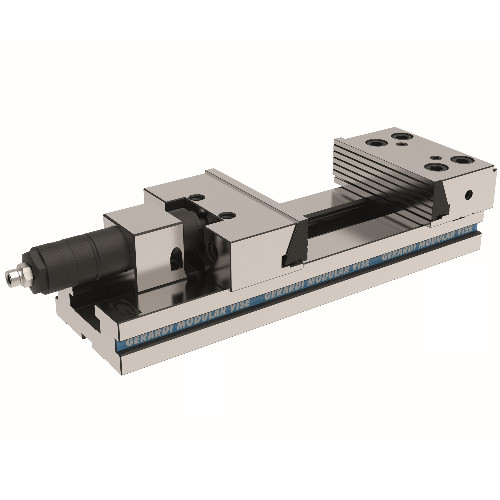

Precision modular vise with hydraulic cylinder single effect - Art.1E T.4x500
StandardMatic precision modular vise with solid guided movable jaw and single effect hydraulic cylinder
Price: Log in For Price
Toote spetsifikatsioonid
| Type | Standard Matic Vises | Base Height | 58 mm |
| Jaw Width | 175 mm | Overall Height | 118 mm |
| Jaw Depth | Type4 | Product Length | 755 mm |
| Jaw Height | 60 mm | Model No | Art. 1E |
| Jaw Opening Capacity | 500 mm | Weight | 52 kg |
| Compatible With | Standard | Maximum Clamping Force | 30 kN |
| Base Width | 145 mm |
Toote omadused
| FamilyDesc | StandardMatic precision modular vise with solid guided movable jaw and single effect hydraulic cylinder | Remarks | • Precision modular vise with hydraulic cylinder single effect - with holding clamps Art.298 supplied for free • Accuracy: ±0,02mm • Hardened: HRC 58±2 |
