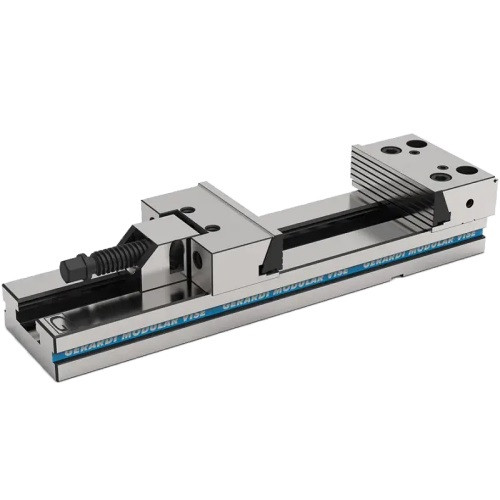

Precision modular vise Art.1 T.4x500
STD precision modular vise with solid guided movable jaw.
Price: Log in For Price
Toote spetsifikatsioonid

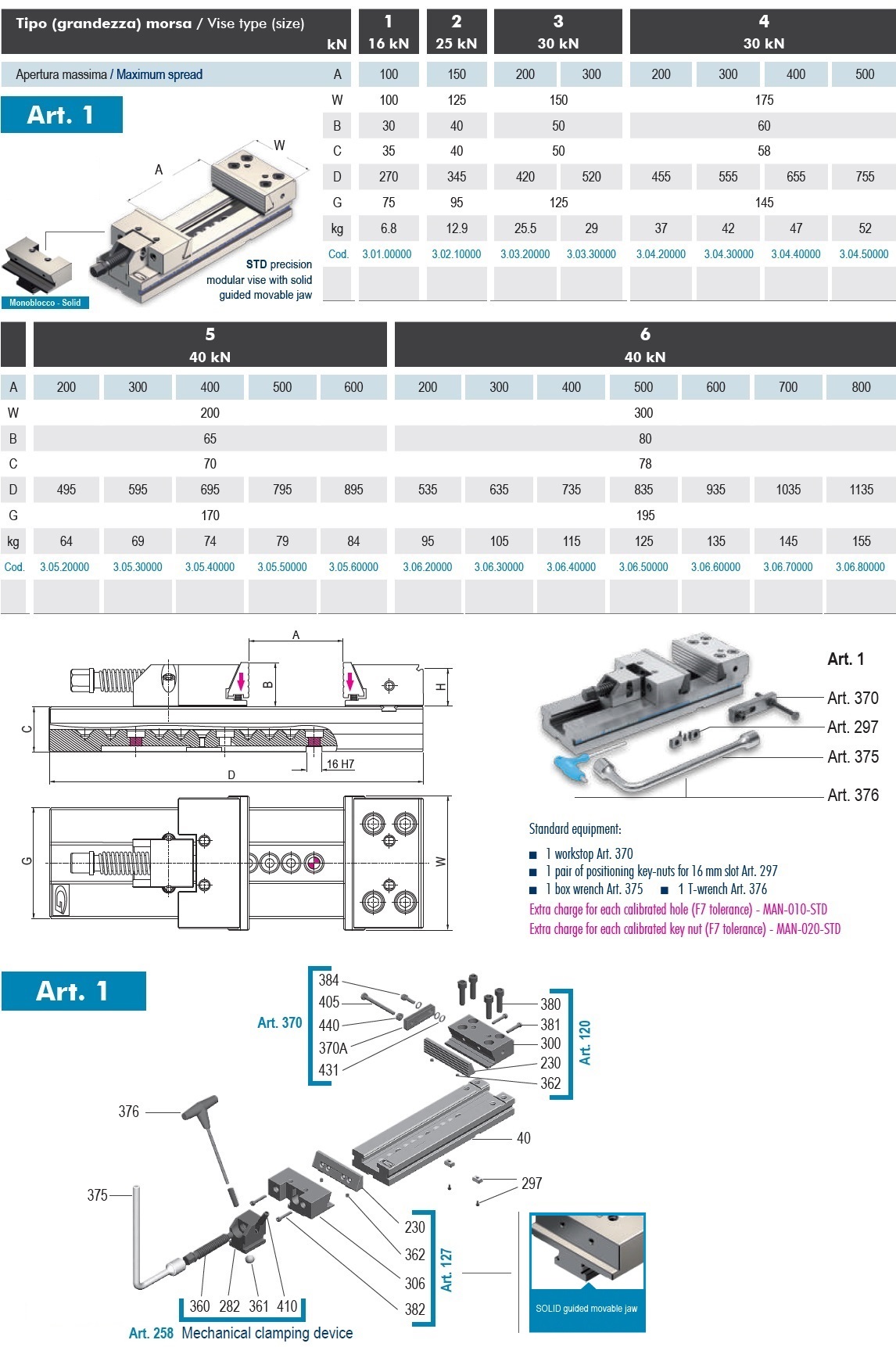

| Type | Standard Vises | Base Height | 58 mm |
| Jaw Width | 175 mm | Overall Height | 118 mm |
| Jaw Depth | Type4 | Product Length | 755 mm |
| Jaw Height | 60 mm | Model No | Art.1 |
| Jaw Opening Capacity | 500 mm | Weight | 52 kg |
| Compatible With | Standard | Maximum Clamping Force | 30 kN |
| Base Width | 145 mm |
Toote omadused
| FamilyDesc | STD precision modular vise with solid guided movable jaw. | Remarks | • Highest accuracies ±0,02mm Solid vise base. Every sliding and coupling surface is ground. Centesimal tollerances are guaranteed by checking cycles with CNC measuring machine. The perfect alignment with the machine axis is given by longitudinal and cross keyways (16H7) or positioning holes (Ш16 mm F7), upon specific request, on the vise base. Of course this allows minimum of set up times and gang operations. • High alloyed quality resistance steel, case hardened HRC 58±2, is used in manufacturing all the Gerardi vises and accessories in order to give maximum rigidity, high performances and no wear. As evidence we give 5 YEARS WARRANTY on all the vises and mechanical components. |
