CrazyDrill Alu 10xd, coated, 2 flute, 0.4x4.9x45 mm, SD 3 h6
CrazyDrill Alu small coated drills for highest performance in cast and wrought aluminum alloys. This solid carbide drill impresses mostly with its extraordinary high drilling speed and tool life also in aluminum alloys with high silicon content. With a three flutes and a reduced chisel geometry, self-centering upon tool entry is guaranteed. Spot or pilot drilling are not necessary. Highest hole straightness, roundness and surface quality are guaranteed. Spot drilling or starter drilling is only recommended on irregular, rough or inclined surfaces. Regrinding: This product can be reground starting from O 1.4 mm
Price: Log in For Price
Toote spetsifikatsioonid

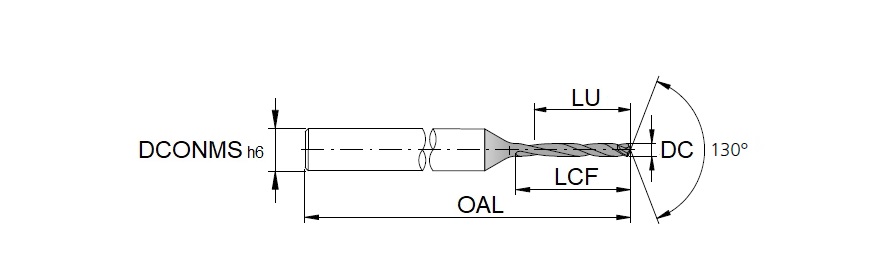

| Drill Bit Size / Cutting Diameter (DC) - Inch | - | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.0158″ | Tool Type | solid carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 0.4 mm | Measurement Type | Metric |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | - | Usable Length (LU) | 4.9 mm |
| Length Group | 10xD | Length Chip Flute (LCF) | 4 mm |
| Coating | Special DLC | Overall Length (OAL) | 45 mm |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Flute Count (NOF) | 3 |
| Application | | Drilling | | Feature | Cutting Diameter Tolerance: + 0.004 mm ÷ 0 |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Cutting Direction (HAND) | Right Hand |
| Coolant Supply Property (CSP) | External | Connection Code Machine Side (CCMS) | Cylindrical |
| Point Angle (SIG) | 130 Degrees | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 4.9 mm | Unit | M |
| Shank Type | Round |
Toote omadused
| FamilyDesc | CrazyDrill Alu small coated drills for highest performance in cast and wrought aluminum alloys. This solid carbide drill impresses mostly with its extraordinary high drilling speed and tool life also in aluminum alloys with high silicon content. With a three flutes and a reduced chisel geometry, self-centering upon tool entry is guaranteed. Spot or pilot drilling are not necessary. Highest hole straightness, roundness and surface quality are guaranteed. Spot drilling or starter drilling is only recommended on irregular, rough or inclined surfaces. Regrinding: This product can be reground starting from O 1.4 mm | Remarks | Coolant type, pressure, filtration and flowrate |
