CrazyDrill Cool SST-Inox 6xd, coated, 2 flute, 1.3x11.7x57 mm, SD 4 h6
CrazyDrill Cool SST-Inox drills for stainless steels, heat-resistant and CrCo alloys in the diameter range of 1.0 mm up to 6.35 mm and depths of 6 x d. The new tip and flute geometry as well as the shape of the cooling channels (due to this newly designed shape, up to four times more coolant volume reaches the drill tip), in conjunction with the innovative copper-red coating form the foundation for drilling in one single step with high performance in terms of quality, tool life and machining time. Version 6 x d - centering is not necessary on straight surfaces, with its tip angle of 140°and its chisel "s"-from the drill has good self-centering. We recommend pilot drilling or centering only on irregular, rough or inclined surfaces and if a high position accuracy is requested. Regrinding: This product can be reground starting from O 1.40 mm
Price: Log in For Price
Toote spetsifikatsioonid

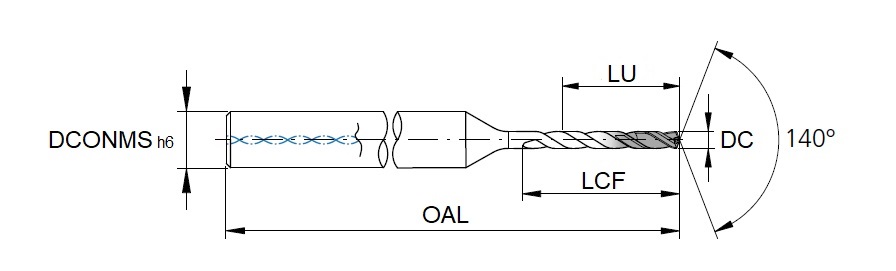

| Drill Bit Size / Cutting Diameter (DC) - Inch | - | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.0512″ | Tool Type | solid carbide Drills |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 1.3 mm | Measurement Type | Metric |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | - | Usable Length (LU) | 11.7 mm |
| Length Group | 6xD | Length Chip Flute (LCF) | 7.8 mm |
| Coating | eXedur RIP | Overall Length (OAL) | 57 mm |
| Applicable Material | | Stainless Steel | Super Alloys | CrCo Alloys | | Flute Count (NOF) | 2 |
| Application | | Drilling | | Feature | Cutting Diameter Tolerance: + 0.004 mm ÷ 0 |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Cutting Direction (HAND) | Right Hand |
| Coolant Supply Property (CSP) | Internal | Connection Code Machine Side (CCMS) | Cylindrical |
| Point Angle (SIG) | 140 Degrees | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 11.7 mm | Unit | M |
| Shank Type | Round |
Toote omadused
| FamilyDesc | CrazyDrill Cool SST-Inox drills for stainless steels, heat-resistant and CrCo alloys in the diameter range of 1.0 mm up to 6.35 mm and depths of 6 x d. The new tip and flute geometry as well as the shape of the cooling channels (due to this newly designed shape, up to four times more coolant volume reaches the drill tip), in conjunction with the innovative copper-red coating form the foundation for drilling in one single step with high performance in terms of quality, tool life and machining time. Version 6 x d - centering is not necessary on straight surfaces, with its tip angle of 140°and its chisel "s"-from the drill has good self-centering. We recommend pilot drilling or centering only on irregular, rough or inclined surfaces and if a high position accuracy is requested. Regrinding: This product can be reground starting from O 1.40 mm | Remarks | Coolant type, pressure and filtration • Coolant type: For best results, Mikron Tool recommends the use of cutting oil as coolant fluid. Alternatively, emulsion of 8% or more with EP-Additives (Extreme-Pressure-Additives) can be used with good results as well • Filtration: Good filter quality is very important when using through coolant drills. Dirt particles or residual chips can clog the coolant holes and consequently reduce dramatically the flowrate • The following filter qualities must be adhered especially in small diameters: - Drill with Ø < 2 mm filter quality ≤ 0.010 mm - Drill with Ø < 3 mm filter quality ≤ 0.020 mm - Drill with Ø < 6.35 mm filter quality ≤ 0.050 mm • Coolant pressure: At least the coolant pressure mentioned below is required for the CrazyDrill Cool SST-Inox to achieve reliable drilling. High pressure is generally better for the cooling and flushing effect - Drill Ø 1-2 mm Minimum pressure [bar] 40 - Drill Ø 2–4 mm Minimum pressure [bar] 30 - Drill Ø >4 mm Minimum pressure [bar] 30 |
