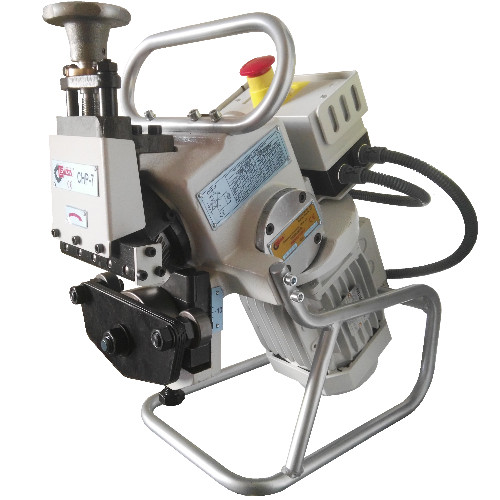

Portable, lightweight and fast, perfect for small thicknesses CHP 7
Toote spetsifikatsioonid
| Type of Power | Electric | Horsepower | 0.55 kW |
| Type | Shearing Cutting Bevelling Machines | Phase | 3 |
| Bevel Capacity | 10 mm | Voltage | 220/380 V |

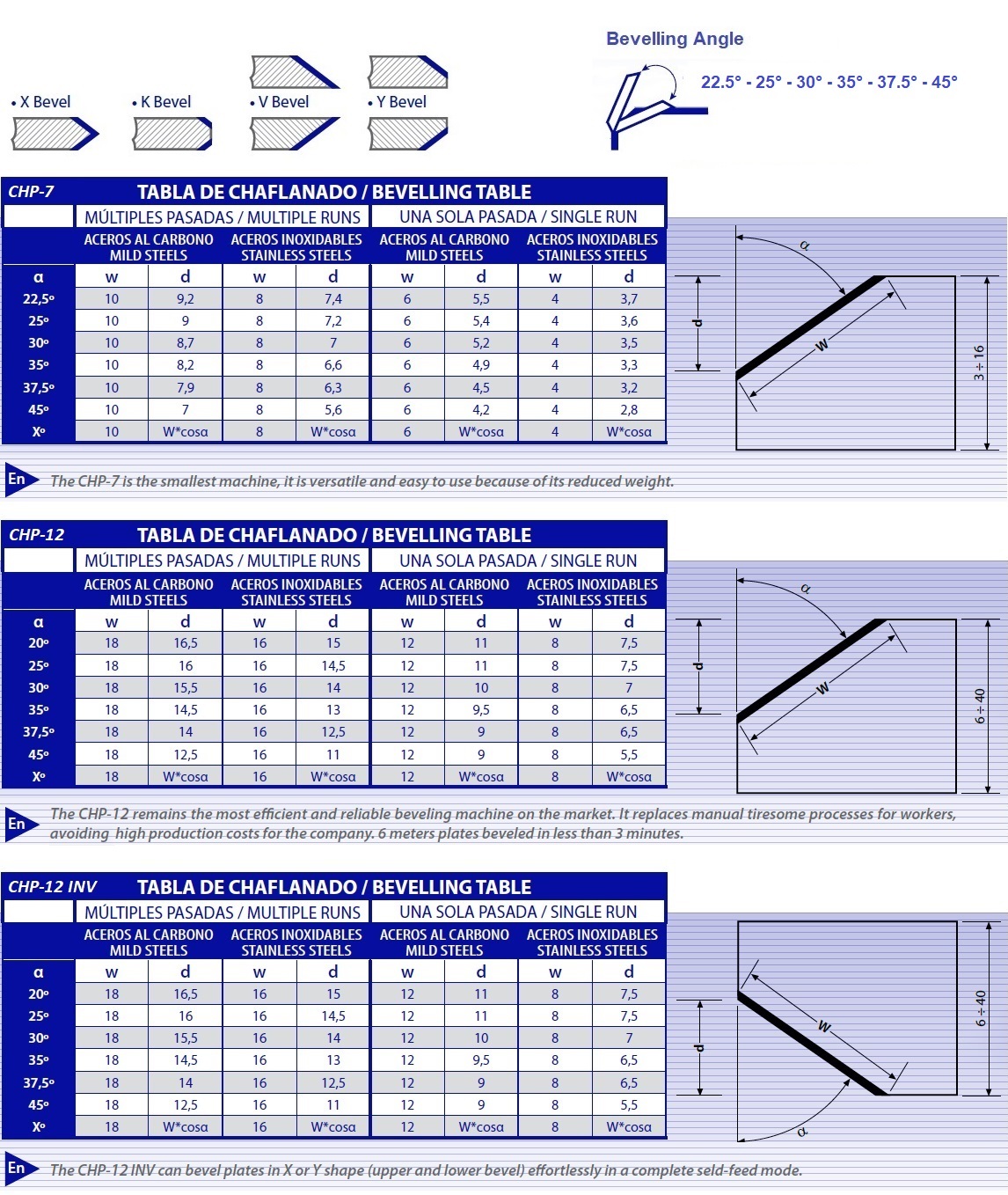

| Bevel Angle | | 22.5° | 25° | 30° | 35° | 37.5° | 45° | | Model No | CHP 7 |
| Maximum RPM | - | Weight | 45 kg |
Toote omadused
| FamilyDesc | Perfect solution for clients that don't need high technology solutions whilst maintaining efficiency and quality levels. | Remarks | • Recommended for bevelling aluminum • Bevel speed: 1.6 m/ min • Maximum bevel in one run: 6 mm; Maximum bevel recommended in several runs: 10 mm ( Dimensions calculated on 400 Mpa steel, bevel length) • Maximum recommended thickness: plates and tubes up to 8 mm • Nominal thickness: plates and tubes from 3 mm to 16 mm • Double bevel with 2 machines working in parallel: CHP 12 + CHP12 INV • Plate beveling: width min. 55 mm (for smaller width, please consult) • Tube bevelling: Ø min. int.100 mm • Disc bevelling: Ø min. 350 mm • Electric box with: Thermomagnetic switch trip Emergency stop button |
