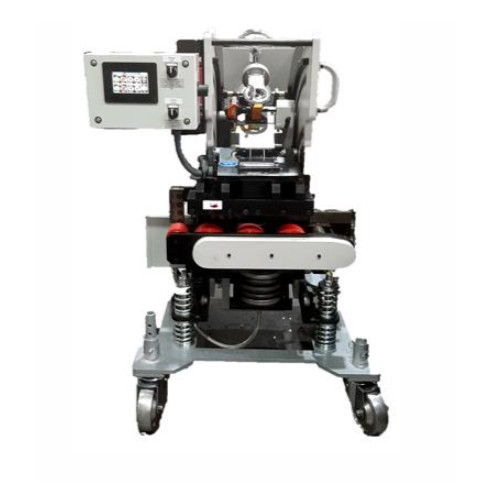

Cutting bevelling machine CHP 30 G
Cevisa innovates further and creates new class of self-feed beveling machine with the launch of the CHP 60 G heavy duty beveling machine. Today it is the most significant advance in mechanized high capacity bevellers, specially developed for largethicknesses and hard steel, merging 2 technologies in one: world unique portable milling and beveling machine with up to 100 mm thick plates. Suitable for duplex, super duplex, hardox, armox…The CHP 60 G is designed to handle extremely demanding welding tasks by giving user shigher bevelling precision, speed performance and quality, fulfilling needs thanks to its angles, width and cut accuracy adjustments.
Price: Log in For Price
Toote spetsifikatsioonid
| Type of Power | Electric | Horsepower | 2.2 kW |
| Type | Milling Cutting Bevelling Machines | Phase | 3 |
| Bevel Capacity | 35 mm | Voltage | 220/380 V |

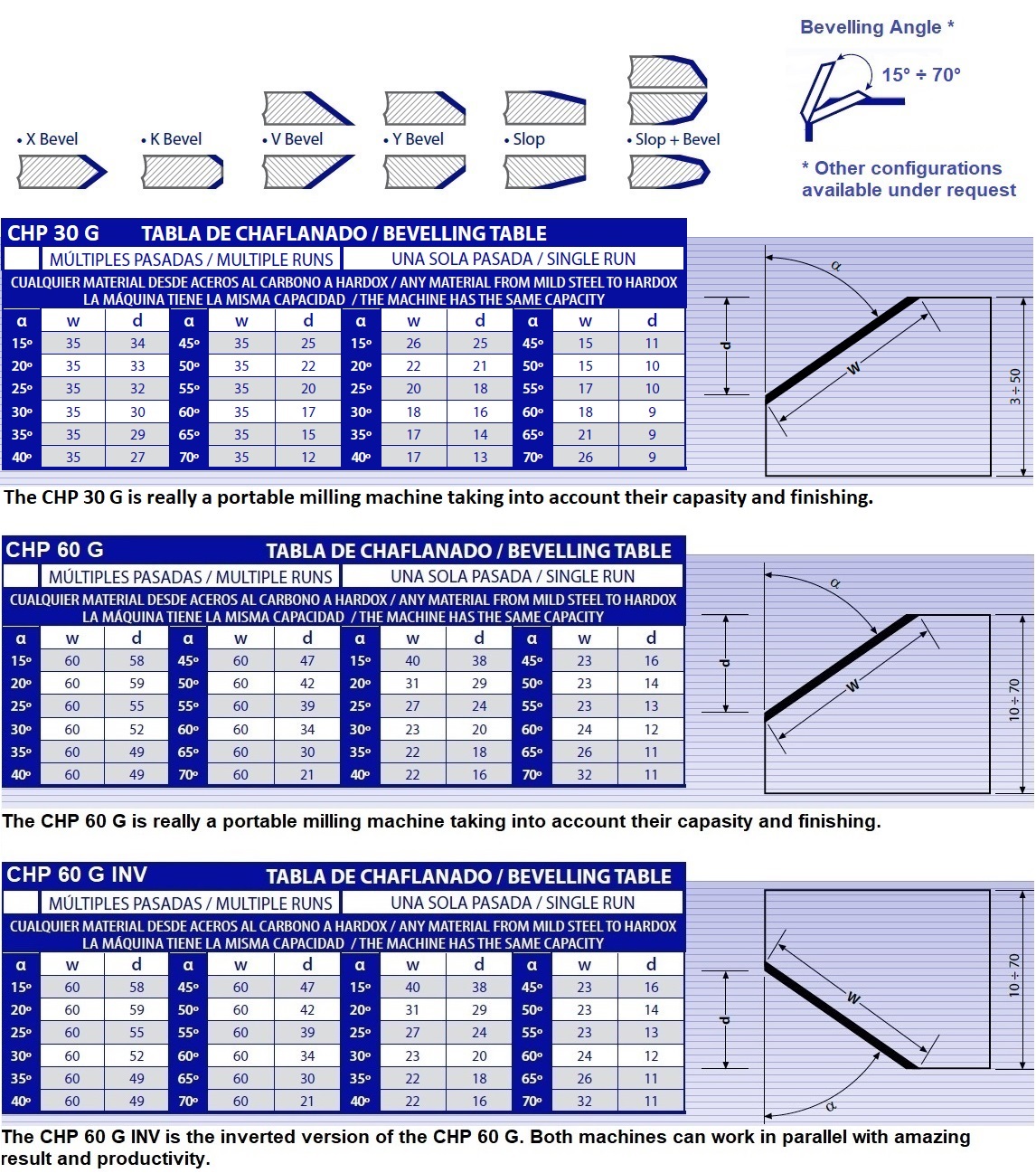

| Bevel Angle | 15° - 70° | Model No | CHP 30G |
| Maximum RPM | - | Weight | 620 kg |
Toote omadused
| FamilyDesc | Cevisa innovates further and creates new class of self-feed beveling machine with the launch of the CHP 60 G heavy duty beveling machine. Today it is the most significant advance in mechanized high capacity bevellers, specially developed for largethicknesses and hard steel, merging 2 technologies in one: world unique portable milling and beveling machine with up to 100 mm thick plates. Suitable for duplex, super duplex, hardox, armox…The CHP 60 G is designed to handle extremely demanding welding tasks by giving user shigher bevelling precision, speed performance and quality, fulfilling needs thanks to its angles, width and cut accuracy adjustments. | Remarks | • Maximum bevelling speed: 500 mm / min • Precise adjustment of the depth of the chamfer by electronic display. • Automatic speed regulation according to material. • Integrated chamfer calculator on the display. • Adjustable feed / chamfering speed depending on the material to be bevelled • Adjustable spindle speed. • Digital display for reading material feed speed and spindle RPM. • Clamping of the sheet by a constant pressure of 4 Bars. • Bevel finish: machined • Bevelling of plates from 5 mm to 50 mm thickness • 35 mm bevel length • Capability in one run: 25 mm bevel lenght • Adjustable bevel angles from 15° to 70° • Minimum dimensions of plates: Width 150 mm and length 250 mm • Electric box with: Undervoltage trip Emergency stop button Magneto-thermal protection • Works height: adjustable from 720 to 810 mm Available accessories (aditional order): • Inserts • Anti-marking upper rollers of polyurethane • Pneumatic elevation |
