SMT 30 AER-24.G1

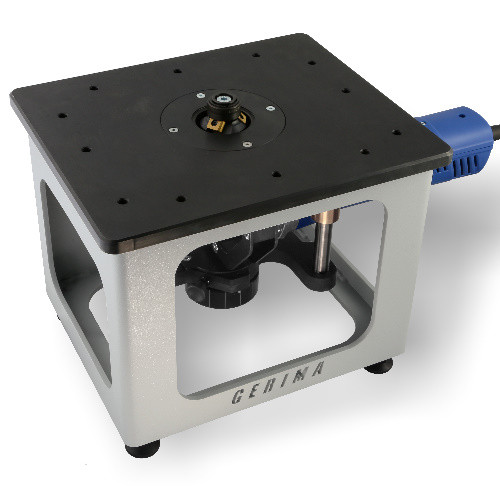

The GERIMA table edge-milling machines consists of the motor drive and milling technology of the SMT 30 AER-24.G1 / SMT 30 AER-14.G1, combined with a stable table frame. The milling head including the guide wheel protrudes from the surface of the table in the middle, so that a simple manual guidance of the workpiece along the milling head and along the guide wheel is ensured. These machines are particularly suitable for the machining of bevels and radii at straight edges, contours and bore holes for small and medium size work pieces.
Price: Log in For Price
Toote spetsifikatsioonid
| Type of Power | Electric | Horsepower | 1.5 kW |
| Type | Table bevelling machines | Phase | 1 |
| Bevel Capacity | 8 mm | Voltage | 230 V |
| Bevel Angle | 30/45/60° | Model No | SMT 30 AER-24.G1 |
| Maximum RPM | 7900 | Weight | 19 kg |
Toote omadused
| FamilyDesc | The GERIMA table edge-milling machines consists of the motor drive and milling technology of the SMT 30 AER-24.G1 / SMT 30 AER-14.G1, combined with a stable table frame. The milling head including the guide wheel protrudes from the surface of the table in the middle, so that a simple manual guidance of the workpiece along the milling head and along the guide wheel is ensured. These machines are particularly suitable for the machining of bevels and radii at straight edges, contours and bore holes for small and medium size work pieces. | Remarks | Noise emission • Sound power level Lwa / dB (A) 101 dB (A) Allowed materials and formats • Thickness of workpiece min. 3 mm • Bevel angle - standard 45° (special type 0 - 60° possible) • Bevel width 1-8 mm (depending on material and guide wheel) • Allowed materials - Aluminium 1-8 mm - Steel 1-6 mm - Stainless steel 1-3 mm • Radius - standard: 2.5 / 3 / 4 mm (depending on material and guide wheel) - (special type 1.2 mm possible) |
