Toote spetsifikatsioonid
| Thread Diameter Size (TDZ) | M16 | Coolant Supply Property (CSP) | External |
| Thread Standard | DIN ISO 13 | Cutting Edge Material | HSS |
| Standard | DIN 352 | Application | | Taps for Through Hole | Taps for Blind Hole | |
| Threads per Inch (TPI) | 13 Threads/" | Measurement Type | Metric |
| Pitch in mm | 2 mm | Applicable Material | | Steel | Cast Iron | Aluminum | Brass | Bronze | Plastics | |
| Thread Tolerance Class (TCTR) | 6H | Contains | 3 types of taps |
| Tool Type | Hand Taps | Thread Cutting Part Length (THL) | 32 mm |
| Shank Type | Square shank | Thread Pitch (TP) | 2 mm |
| Cutting Direction (HAND) | Right Hand Cutting | Thread Size | M16 × 2 |
| Coating | Uncoated | Thread Form Type (THFT) | M60 |
| Overall Length (OAL) | 80 mm | Unit | M |
| Connection Diameter Machine Side (DCONMS) | as per DIN 10 |
Toote omadused

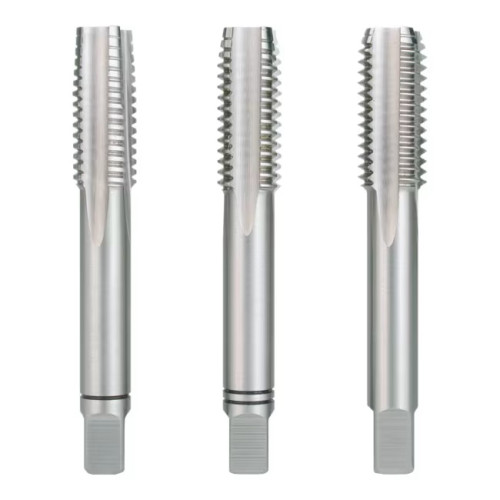

| FamilyDesc | The hand tap consists of heavy-duty high-speed steel. For through threads and bottoming threads in unalloyed and low-alloyed steels up to a strength of 800 N/mm², malleable cast iron and non-ferrous metals. The thread is cut in three operation. | Remarks | Set: 3-piece • Taper tap: 6 - 8-thread chamfer • Second tap: 4 - 5-thread chamfer • Final tap: 2 - 3-thread chamfer |
