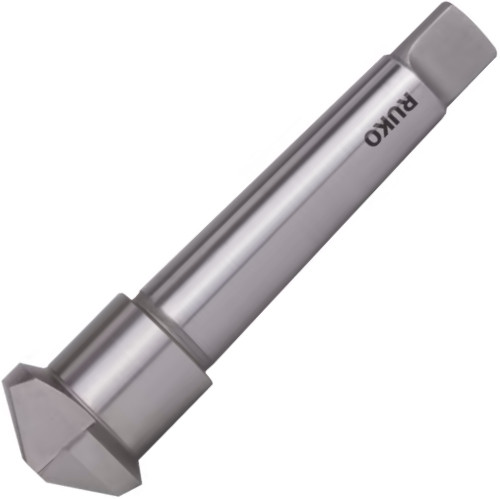

HSS Countersink type D 120°, Z=3, Ø25x109 mm
Because of the CBN deep-ground flutes the cutting edges are extremely sharp. Ideal for burr- and chatter-free deburring and countersinking. Best results at low cutting speeds.
Price: Log in For Price
Toote spetsifikatsioonid

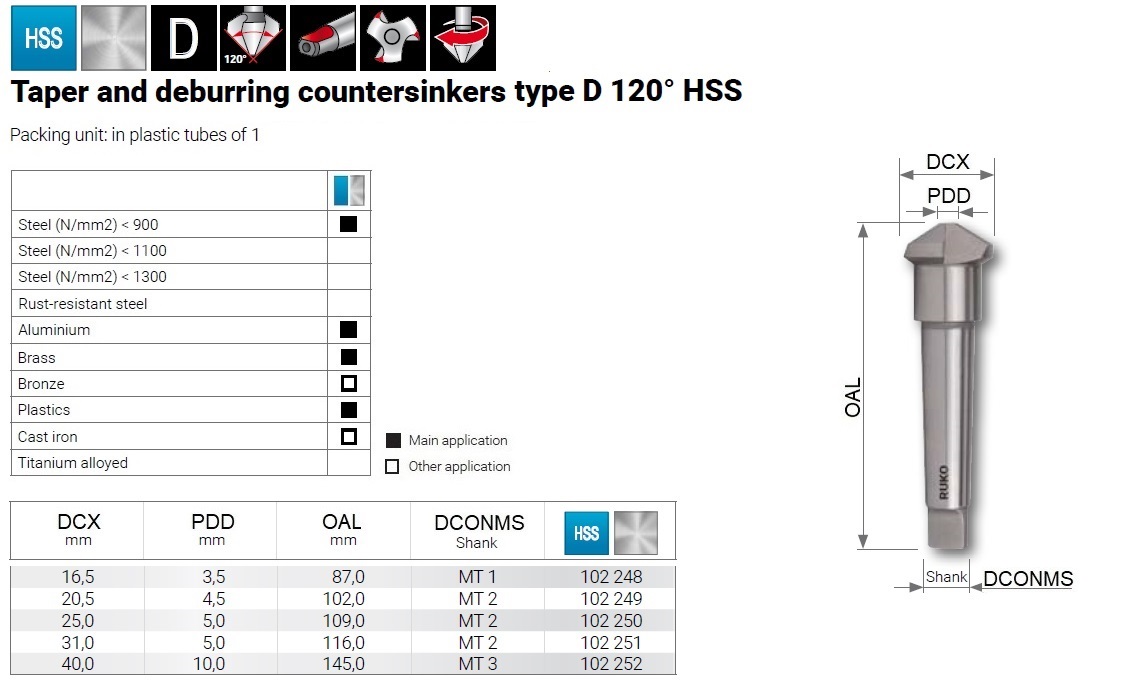

| Tool Type | Countersink 120° | Applicable Material | | Steel (N/mm²) < 900 | Cast Iron | Aluminum | Brass | Bronze | Plastics | |
| Cutting Diameter (DC) | 25 mm | Pilot Drill Diameter (PDD) | 5 mm |
| Overall Length (OAL) | 109 mm | Cutting Diameter Maximum (DCX) | 25 mm |
| Shank Length (LS) | - | Cutting Diameter Minimum (DCN) | 5 mm |
| Connection Diameter Machine Side (DCONMS) | MT2 | Shank Type | Taper |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Point Angle (SIG) | 120 Degrees | Cutting Direction (HAND) | Right hand cut |
| Coating | Uncoated | End Shape | Form D |
| Cutting Edge Material | HSS | Application | | Deburring | Chamfering | |
| Length Chip Flute (LCF) | 14.43 mm | Unit | M |
| Diameter Range | 5-25 mm |
Toote omadused
| FamilyDesc | Because of the CBN deep-ground flutes the cutting edges are extremely sharp. Ideal for burr- and chatter-free deburring and countersinking. Best results at low cutting speeds. |
