Toote spetsifikatsioonid
| Cutting Diameter (DC) | 19 mm | Shank Type | Round |
| Cutting Diameter Maximum (DCX) | 19 mm | For Screw Size | M10 |
| Length Chip Flute (LCF) | 64 | Coating | Black |
| Pilot Drill Diameter (PDD) | 10.5 mm | Cutting Edge Material | HSS |
| Overall Length (OAL) | 127 mm | Applicable Material | | Steel 900 N/mm² | Aluminium | Brass | Plastics | Bronze | Cast iron | |
| Connection Diameter Machine Side (DCONMS) | 19 mm | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Unit | M |
Toote omadused

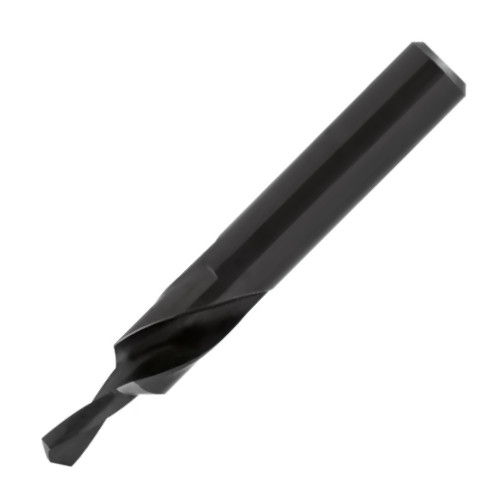

| FamilyDesc | Short and torsion stable drill, suitable for the use on CNC or NC machines. The drilling and countersinking is made in one step. Application: adjust the cutting speed according to the big diameter and the feed rate according to the small diameter. | Remarks | • 90° fine grade for through hole • For efficient drilling of through holes and screw head counterborings with 90° angle |
Shipping Info
PackageWeight
0.042
