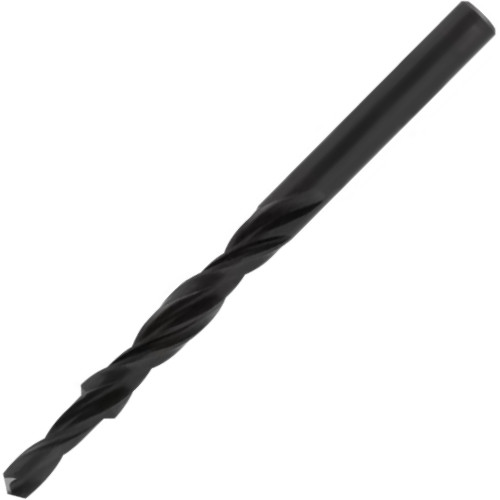

Subland drill long type N HSS M10 Ø11x142 mm HSS Black
Enables drilling and sinking combined in one step. Application: adjust the cutting speed according to the big diameter and the feed rate according to the small diameter.
Price: Log in For Price
Toote spetsifikatsioonid
| Cutting Diameter (DC) | 11 mm | Shank Type | Round |
| Cutting Diameter Maximum (DCX) | 11 mm | For Screw Size | M10 |
| Length Chip Flute (LCF) | 94 | Coating | Black |
| Pilot Drill Diameter (PDD) | 8.5 mm | Cutting Edge Material | HSS |
| Overall Length (OAL) | 142 mm | Applicable Material | | Steel 900 N/mm² | Aluminium | Brass | Plastics | Bronze | Cast iron | |
| Connection Diameter Machine Side (DCONMS) | 11 mm | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Unit | M |
Toote omadused
| FamilyDesc | Enables drilling and sinking combined in one step. Application: adjust the cutting speed according to the big diameter and the feed rate according to the small diameter. | Remarks | • 90° for thread core hole • For efficient drilling of tapping holes and countersinkings with 90° angle |
Shipping Info
PackageWeight
0.035
