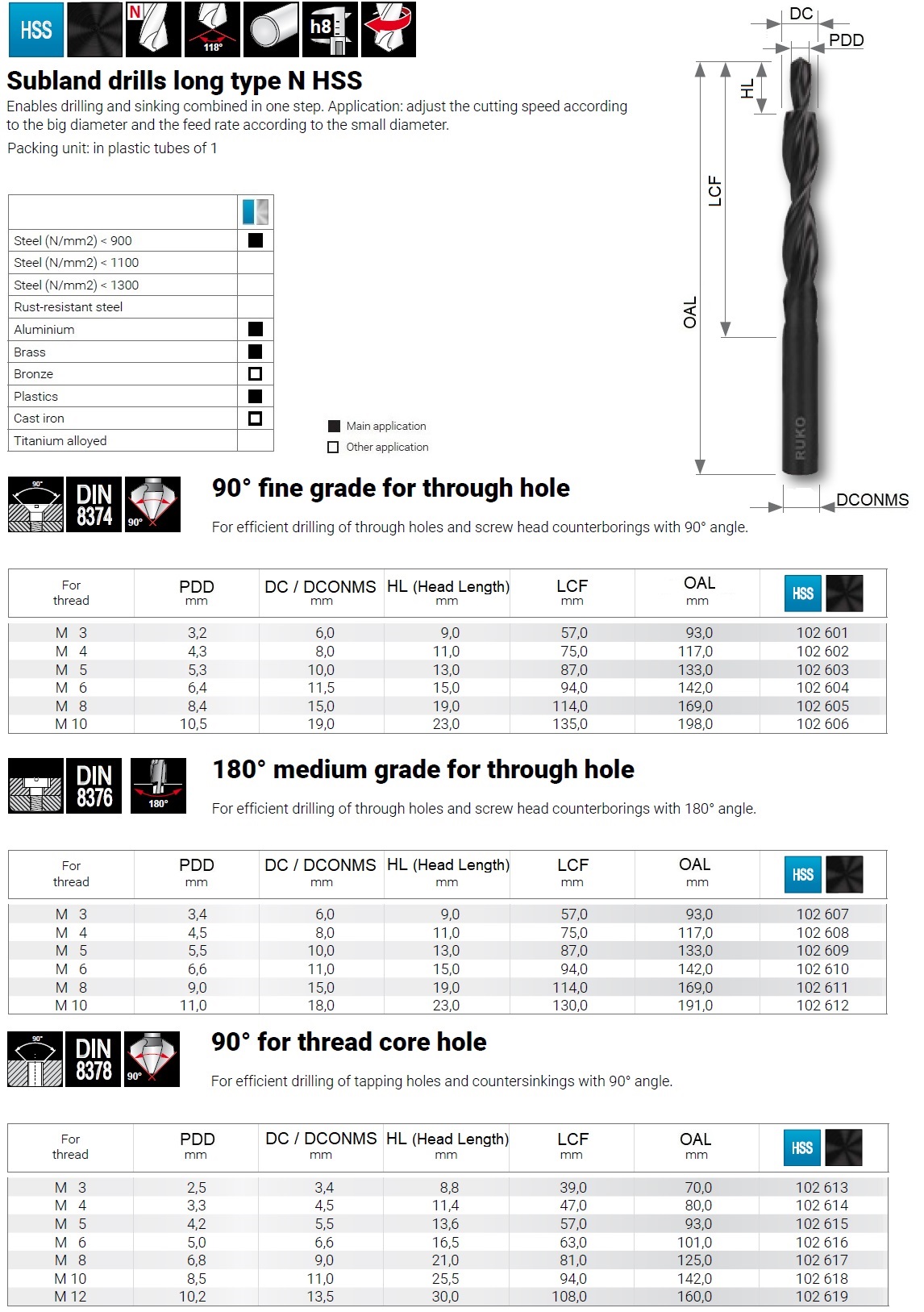

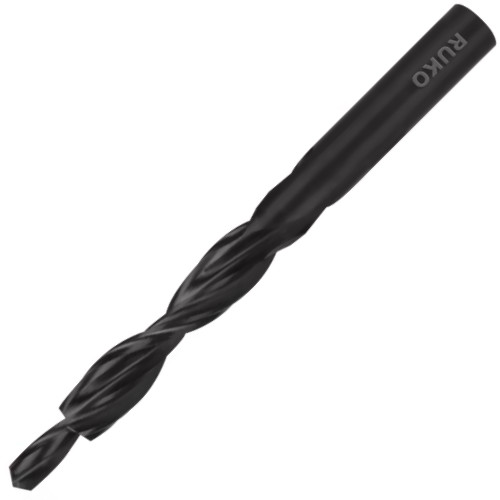

Subland drill long type N HSS M8 Ø15x169 mm HSS Black
Enables drilling and sinking combined in one step. Application: adjust the cutting speed according to the big diameter and the feed rate according to the small diameter.
Price: Log in For Price
Toote spetsifikatsioonid
| Cutting Diameter (DC) | 15 mm | Shank Type | Round |
| Cutting Diameter Maximum (DCX) | 15 mm | For Screw Size | M8 |
| Length Chip Flute (LCF) | 114 | Coating | Black |
| Pilot Drill Diameter (PDD) | 9 mm | Cutting Edge Material | HSS |
| Overall Length (OAL) | 169 mm | Applicable Material | | Steel 900 N/mm² | Aluminium | Brass | Plastics | Bronze | Cast iron | |
| Connection Diameter Machine Side (DCONMS) | 15 mm | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Unit | M |
Toote omadused
| FamilyDesc | Enables drilling and sinking combined in one step. Application: adjust the cutting speed according to the big diameter and the feed rate according to the small diameter. | Remarks | • 180° medium grade for through hole • For efficient drilling of through holes and screw head counterborings with 180° angle |
Shipping Info
PackageWeight
0.042
