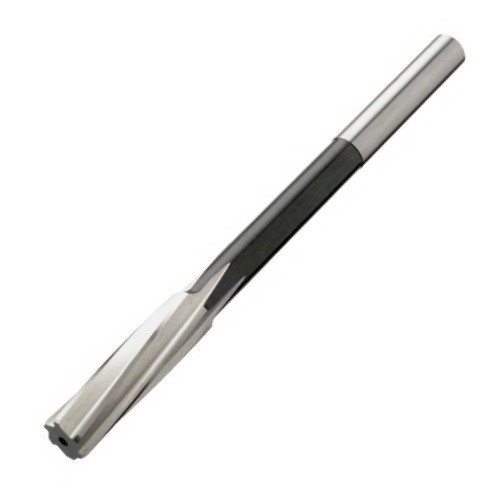

HSSE Machine reamer, Form D, Z=6, 4 H7×19×47×75 mm, SD 4
HSSE machine reamers with cylindrical shank h9, long. Diameter range: 1.5 - 20 mm
Price: Log in For Price
Toote spetsifikatsioonid
| Cutting Diameter (DC) | 4 mm | Flute Type | Spiral |

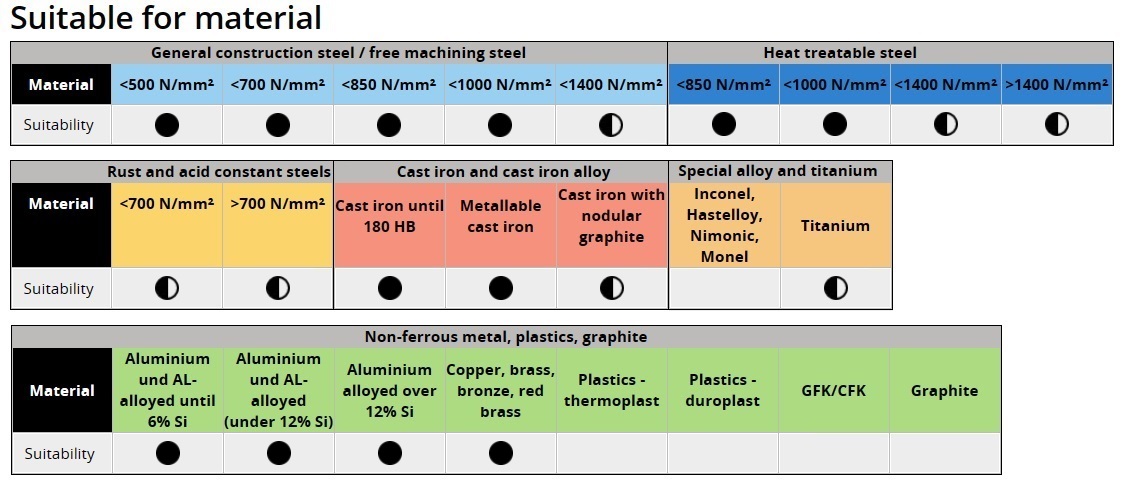

| Applicable Material | Applicable Material: | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Standard | DIN 212 |
| Usable Length (LU) | 47 mm | Coolant Supply Property (CSP) | External |
| Cutting Edge Length (L) | 19 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Tool Type | Machine reamer |
| Flute Count (NOF) | 6 | Body Material | HSSE |
| Overall Length (OAL) | 75 mm | End Shape | FORM D |
| Coating | Uncoated | Cutting Diameter Tolerance | H7 |
| Cutting Edge Material | HSSE | Unit | M |
| Shank Type | Round |
Toote omadused
| FamilyDesc | HSSE machine reamers with cylindrical shank h9, long. Diameter range: 1.5 - 20 mm | Remarks | • Shank Diameter Tolerances : h9 |
