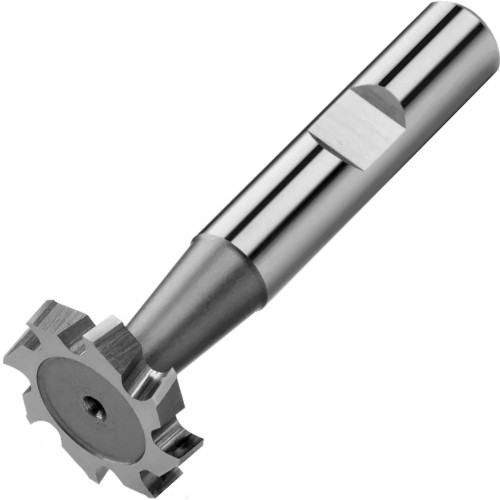

320015.135020 HSS Co5 Woodruff keyseat cutter, Z=6, uncoated, 13.5×2×56 mm, SD 10 DIN1835 B
HSS Co5 Woodruff keyseat cutters, uncoated, shank DIN 1835B
Price: Log in For Price
Toote spetsifikatsioonid
| Cutting Diameter (DC) | 13.5 mm | Coating | Uncoated |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Shank Type | Weldon |
| Overall Length (OAL) | 56 mm | Flute Type | Straight |
| Number of Teeth | 6 | Style | Staggered |
| Cutting Width (CW) | 2 mm | Tool Type | Woodruff cutter |
| Angle | 10 Degrees | Measurement Type | Metric |
| Application | Woodruff keyseat milling | Unit | M |
| Cutting Edge Material | HSS Co5 |
Toote omadused
| FamilyDesc | HSS Co5 Woodruff keyseat cutters, uncoated, shank DIN 1835B | BrandName | ZPS-FN |
| FamilyName | 320015 |
Shipping Info
Name
Keyseat / Disc w/Shank Slotting Cutters
FamilyName
320015
BrandName
ZPS-FN
