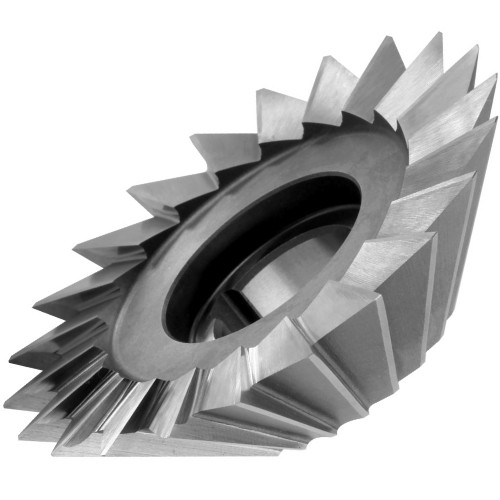

HSSCo5 Single angle milling cutter, type N, Z=18, angle 45°, Ø80 mm
Single angle milling cutters
Price: Log in For Price
Toote spetsifikatsioonid

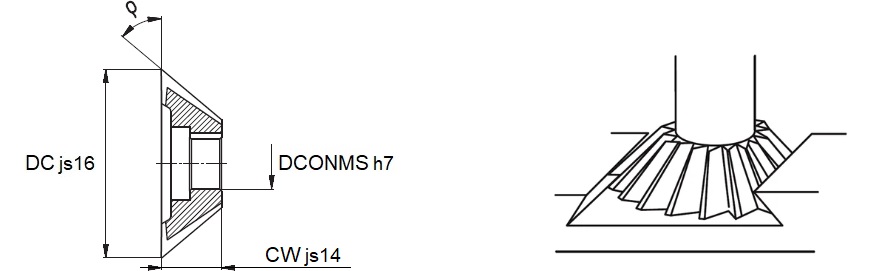

| Cutting Diameter (DC) | 80 mm | Cutting Direction (HAND) | - |
| Cutting Width (CW) | 23 mm | Cutting Edge Material | HSS Co5 |
| Hub Diameter (DHUB) | 22 mm | Angle | 45° |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Application | | Single angle milling | Dovetail milling | Milling of angular grooves | |
| Flute Helix Angle (FHA) | 0° | Measurement Type | Metric |
| Number of Teeth | 18 | Unit | M |
| Coating | Uncoated |
Toote omadused
| FamilyDesc | Single angle milling cutters | BrandName | ZPS-FN |
| FamilyName | 853275V |
Shipping Info
Name
Disc w/Hole Solid Slotting Cutters
FamilyName
853275V
BrandName
ZPS-FN
