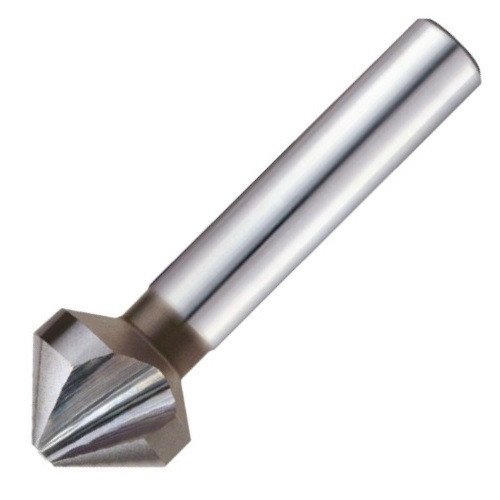

HSS countersink 90°, Z3, 5x4x40-90˚
HSS countersinks 90° with three flutes. Range: Ø 4.3 - 31.0
Price: Log in For Price
Toote spetsifikatsioonid
| Tool Type | Countersink 90° | Diameter Range | 3-5 mm |
| Cutting Diameter (DC) | 5 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum | Bronze | Brass | |
| Overall Length (OAL) | 40 mm | Pilot Drill Diameter (PDD) | 3 mm |
| Shank Length (LS) | - | Cutting Diameter Maximum (DCX) | 5 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Cutting Diameter Minimum (DCN) | 3 mm |
| Flute Count (NOF) | 3 | Shank Type | Round |
| Point Angle (SIG) | 90 Degrees | Measurement Type | Metric |
| Coating | Uncoated | Application | | Deburring | Chamfering | Countersinking | |
| Cutting Edge Material | HSS | Unit | M |
| Length Chip Flute (LCF) | 1.41 mm |
Toote omadused
| FamilyDesc | HSS countersinks 90° with three flutes. Range: Ø 4.3 - 31.0 | Remarks | • Self-centering(3 flutes) • Designed for 90°capscrews countersinking • Hand using • Longitudinal chamfers and contouring • Works without vibrations • Cutting Diameter Tolerance: ±0.05 mm • Shank Diameter Tolerance: h9 • Point Angle Tolerance: +0/-1 mm • TiN & TiCN coating are available on your request |
