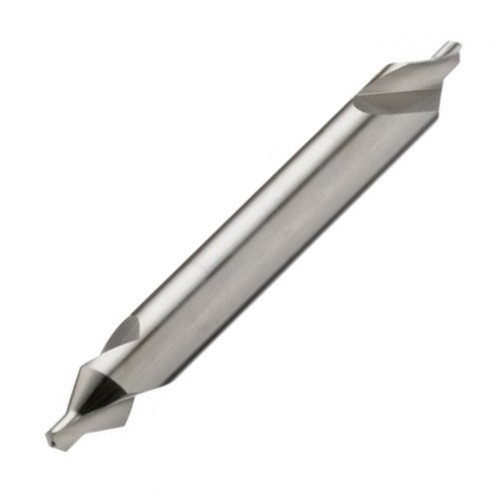

HSSE center drill 60°, Form A, uncoated 2x2.5-3.1x100, SD 6
HSSE center drills 60°, Form A, extra long. Diameter range: 0.75 - 5 mm
Price: Log in For Price
Toote spetsifikatsioonid

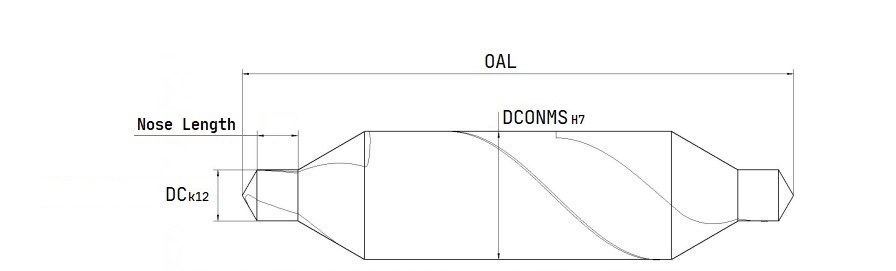

| Style | Form A | Cutting Edge Material | HSSE |
| Drill Bit Size / Cutting Diameter (DC) | 2 mm | Nose Length | 2.5-3.1 mm |
| Decimal Equivalent | 0.0787 | Application | | Countersinking | Drilling | |
| Point Angle (SIG) | 120 Degrees | Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum | Brass | Bronze | Plastics | |
| Angle | 60 Degrees | Measurement Type | Metric |
| Protruding Length (LPR) | - | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 100 mm | Tool Type | Centre drill |
| Connection Thread Nominal Size Machine Side (THSZMS) | - | Single / Double End | Double |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Round | Unit | M |
| Coating | Uncoated |
Toote omadused
| FamilyDesc | HSSE center drills 60°, Form A, extra long. Diameter range: 0.75 - 5 mm |
