Toote spetsifikatsioonid

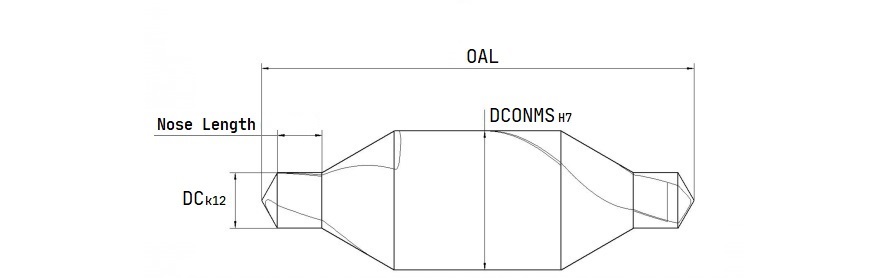

| Style | Form A | Cutting Edge Material | HSS |
| Drill Bit Size / Cutting Diameter (DC) | 2 mm | Nose Length | 2.5-3.1 mm |
| Decimal Equivalent | 0.0787 | Application | | Countersinking | Drilling | |

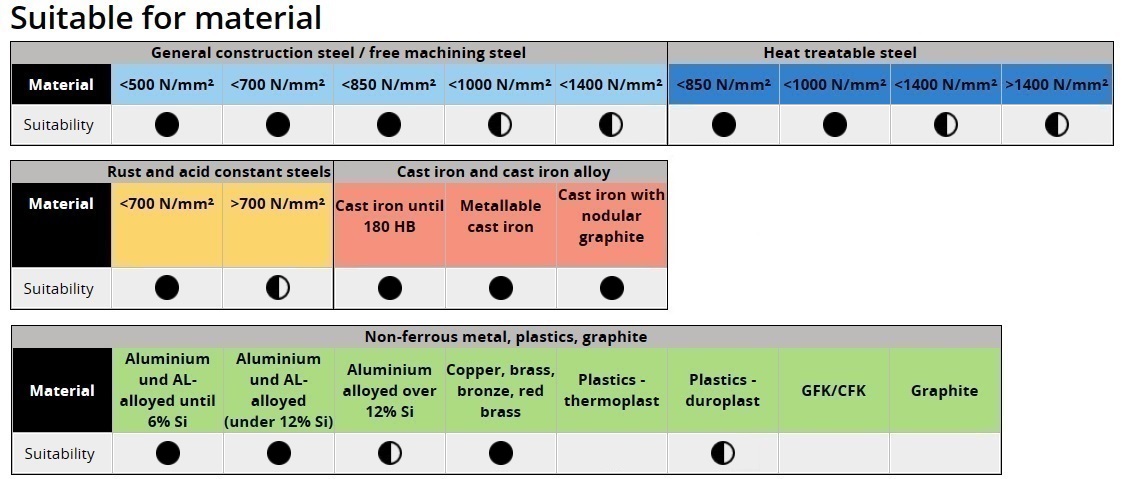

| Point Angle (SIG) | 120 Degrees | Applicable Material | | Steel | Stainless Steel | Cast Iron | Aluminum | Brass | Bronze | Plastics | |
| Angle | 60 Degrees | Measurement Type | Metric |
| Protruding Length (LPR) | - | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 40 mm | Tool Type | Centre drill |
| Connection Thread Nominal Size Machine Side (THSZMS) | - | Single / Double End | Double |
| Connection Diameter Machine Side (DCONMS) | 5 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Round | Unit | M |
| Coating | Uncoated |
