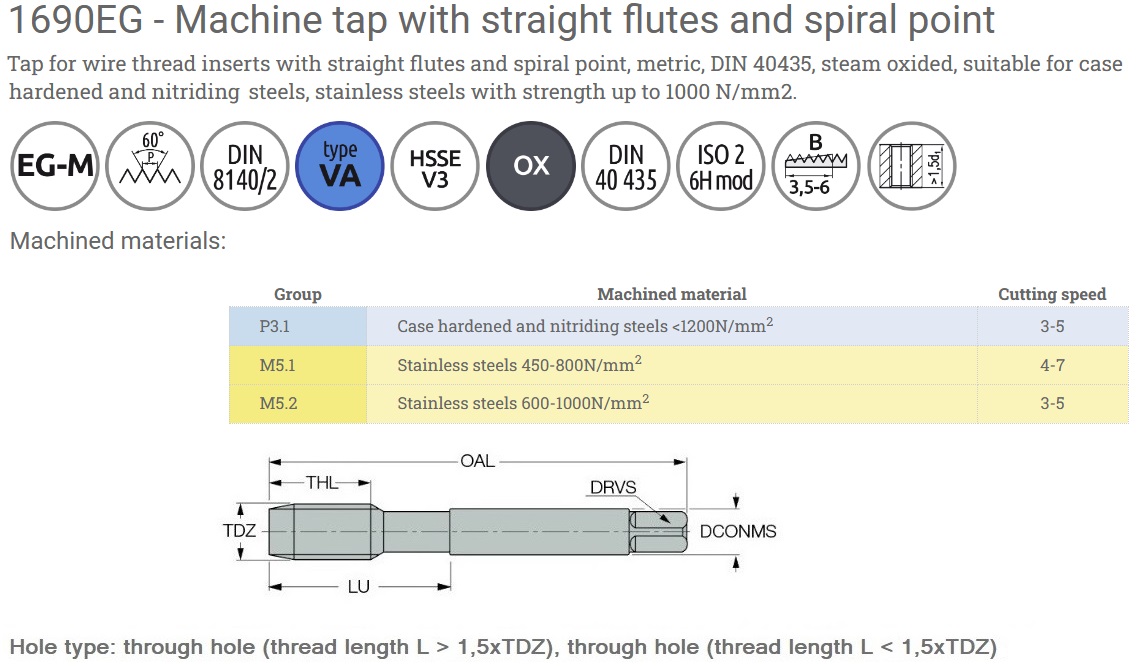

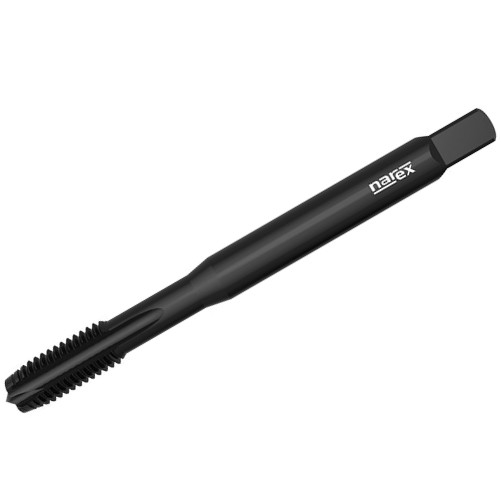

1690EG EG-M3x0.5 HSSE-V3 OX
Tap for wire thread inserts with straight flutes and spiral point, metric, DIN 40435, steam oxided, suitable for case hardened and nitriding steels, stainless steels with strength up to 1000 N/mm².
Price: Log in For Price
Toote spetsifikatsioonid
| Tool Type | STI Tap | Chamfer | B |
| Style | - | Coating | Oxidation |
| Thread Diameter Size (TDZ) | EG-M3 | Coolant Supply Property (CSP) | External |
| Thread Tolerance Class (TCTR) | 6H mod | Thread Pitch (TP) | 0.5 mm |
| Thread Standard | DIN8140/2 | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 12 mm | Usable Length (LU) | - |
| Threads per Inch (TPI) | 51 Threads/" | Measurement Type | Metric |
| Overall Length (OAL) | 63 mm | Connection Diameter Machine Side (DCONMS) | 4.5 mm |
| Cutting Edge Material | HSSE-V3 | Standard | DIN 40435 |
| End Shape | Spiral Point | Thread Size | EG-M3 × 0.5 |
| Applicable Material | | Case hardened steels | Nitriding steels | Stainless steels | | Unit | M |
Toote omadused
| FamilyDesc | Tap for wire thread inserts with straight flutes and spiral point, metric, DIN 40435, steam oxided, suitable for case hardened and nitriding steels, stainless steels with strength up to 1000 N/mm². |
