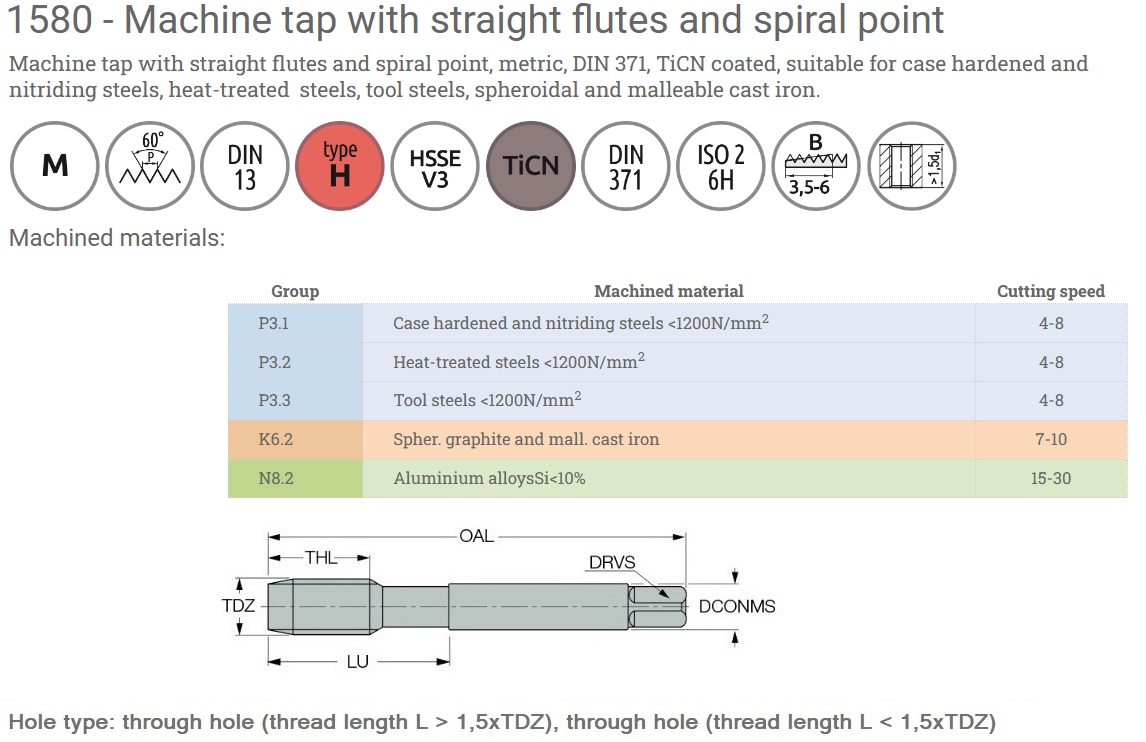

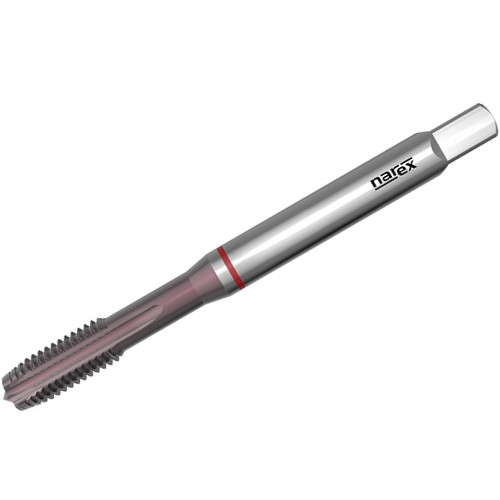

1580 M5x0.8 HSSE
Machine tap with straight flutes and spiral point, metric, DIN 371, TiCN coated, suitable for case hardened and nitriding steels, heat-treated steels, tool steels, spheroidal and malleable cast iron.
Price: Log in For Price
Toote spetsifikatsioonid
| Thread Standard | DIN 13 | Standard | DIN 371 |
| Thread Size | M5 × 0.8 | Applicable Material | | Case hardened steels | Nitriding steels | Stainless steels | Unalloyed copper | Long chipping copper alloys | |
| Thread Diameter Size (TDZ) | M5 | Application | | Taps for Deep Through Hole | Taps for Short Through Hole | |
| Threads per Inch (TPI) | 32 Threads/'' | Connection Diameter Machine Side (DCONMS) | 6 mm |
| Thread Pitch (TP) | 0.8 mm | Thread Cutting Part Length (THL) | 13 mm |
| Thread Tolerance Class (TCTR) | 6H | Drive Size (DRVS) | 4.9 mm |
| Usable Length (LU) | - | Flute Type | Straight |
| Overall Length (OAL) | 70 mm | End Shape | Spiral Point |
| Chamfer | B | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Unit | M |
| Cutting Edge Material | HSSE |
Toote omadused
| FamilyDesc | Machine tap with straight flutes and spiral point, metric, DIN 371, TiCN coated, suitable for case hardened and nitriding steels, heat-treated steels, tool steels, spheroidal and malleable cast iron. |
