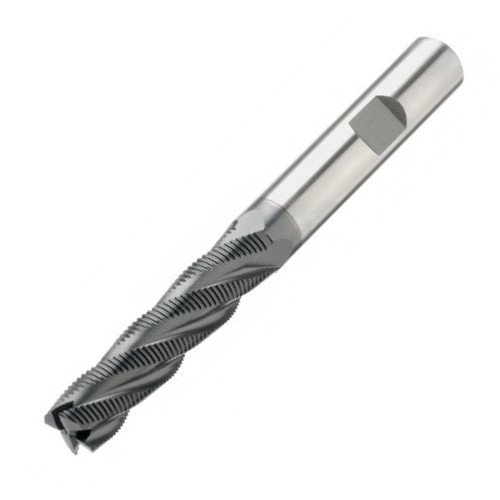

HSSE roughing end mill 30°, DIN 844, Type HR, Z=4, 14×53×110 mm, SD 12 HB, long, BlueCut
HSSE roughing end mills, long. Diameter range: 6 - 32 mm
Price: Log in For Price
Toote spetsifikatsioonid

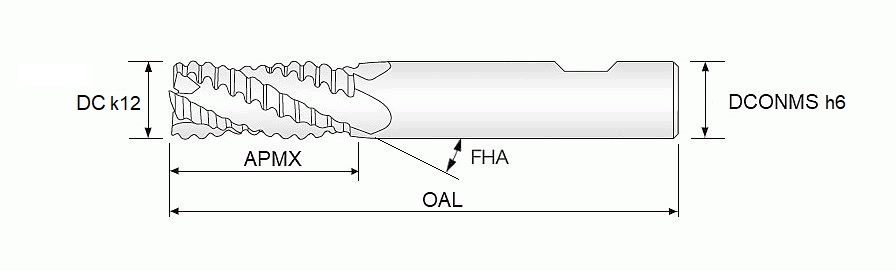

| Cutting Diameter (DC) | 14 mm | Usable Length (LU) | 53 mm |

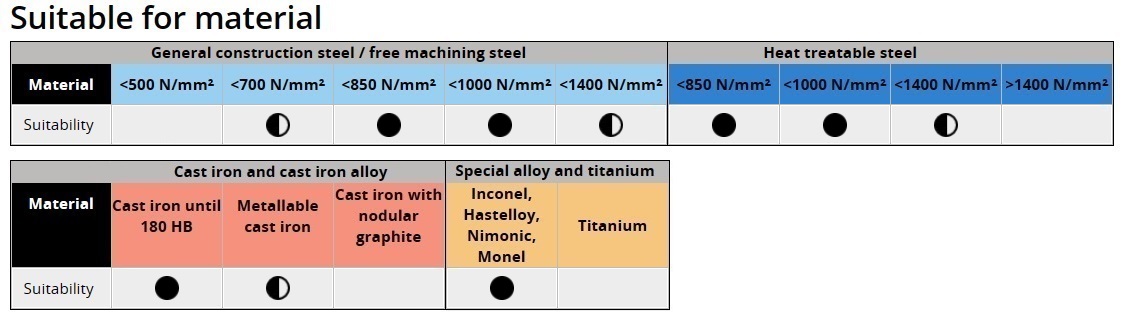

| Connection Diameter Machine Side (DCONMS) | 12 mm | Applicable Material | | Steel | Cast Iron | Super-Alloys | |
| Depth of Cut Maximum (APMX) | 53 mm | Tool Type | HSS end mills, long, Roughing (Fine) |
| Overall Length (OAL) | 110 mm | Decimal Equivalent | - |
| Cutting Edge Material | HSSE | Measurement Type | Metric |
| Coating | BLUECUT | Corner Radius (RE) / Chamfer Width (CHW) | 0 mm |
| Flute Count (NOF) | 4 | Connection Code Machine Side (CCMS) | Weldon |
| Flute Helix Angle (FHA) | 35 Degrees | Shank Diameter Tolerance (TCDMM) | h6 |
| Shank Type | Weldon | Cutting Diameter Tolerance | k12 |
| End Shape | Square | Unit | M |
Toote omadused
| FamilyDesc | HSSE roughing end mills, long. Diameter range: 6 - 32 mm | BrandName | Nachreiner |
| FamilyName | E.9618.1 |
Shipping Info
Name
Square & Corner Radius End Mills
FamilyName
E.9618.1
BrandName
Nachreiner
