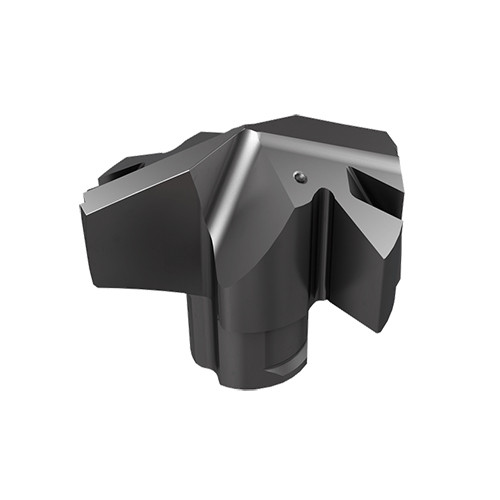

IHP 140 IC948
Exchangeable drilling heads for DCN drills, for machining ISO P materials (non-alloy and carbon steel)
Price: Log in For Price
Toote spetsifikatsioonid

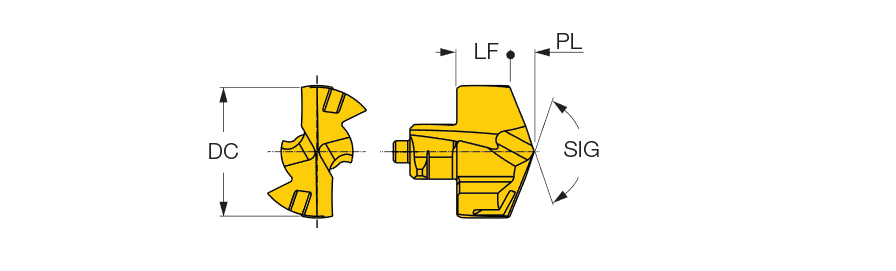

| Cutting Diameter (DC) | 14 mm | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | | Measurement Type | Metric |
| Application | | Chamfering | Drilling | Gundrills | | Point Length (PL) | 2.12 mm |
| Grade | IC948 | Point Angle (SIG) | 140 Degrees |
| Tool Type | Drilling Heads | Coating | TiAlCrN |
| Insert Seat Size Code (SSC) | 14.0 | Body Material | Carbide |
| Functional Length (LF) | 6.03 mm | Unit | M |
Toote omadused
| FamilyDesc | Exchangeable drilling heads for DCN drills, for machining ISO P materials (non-alloy and carbon steel) | COO | Israel |
| Remarks | Intermediate sizes can be supplied on request |
Shipping Info
PackageWeight
0.0135
