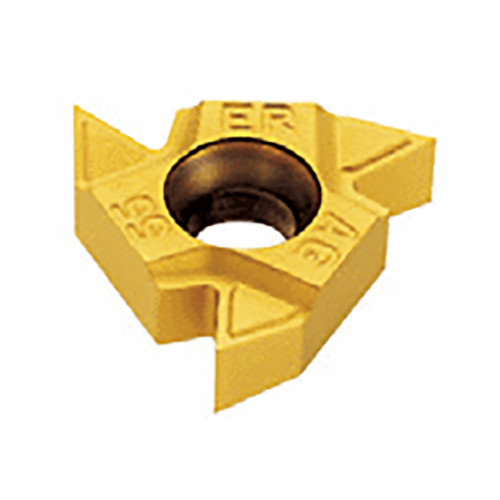

16ER AG 55 TT7010
External 55 partial profile threading inserts for general industry
Price: Log in For Price
Toote spetsifikatsioonid

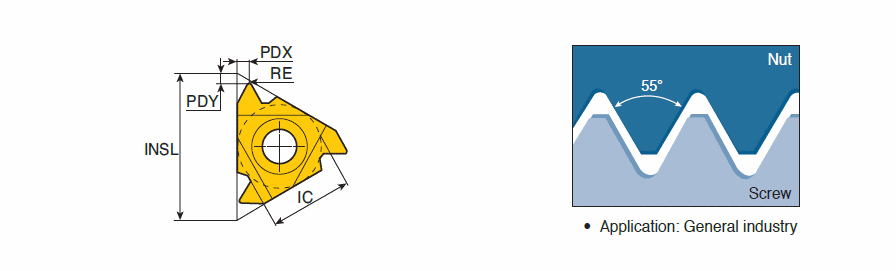

| Inscribed Circle Diameter (IC) | 9.52 mm | Threads per Inch Minimum (TPIN) | 8 |
| Insert Length (INSL) | 16 mm | Threads per Inch Maximum (TPIX) | 48 |
| Corner Radius (RE) | 0.05 mm | Thread Pitch Minimum (TPN) | 0.5 mm |
| Grade | TT7010 | Thread Pitch Maximum (TPX) | 3 mm |
| Coating | TiN | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Application | | External Threading | | Unit | M |
| Applicable Material | | Steel | Cast Iron | |
Toote omadused
| FamilyDesc | External 55 partial profile threading inserts for general industry | FamilyName | ER/L-55 |
| COO | ISRAEL | BrandName | Taegutec |
Shipping Info
PackageWeight
0.0046
Name
Laydown Threading Indexable Inserts
FamilyName
ER/L-55
BrandName
Taegutec
