Toote spetsifikatsioonid

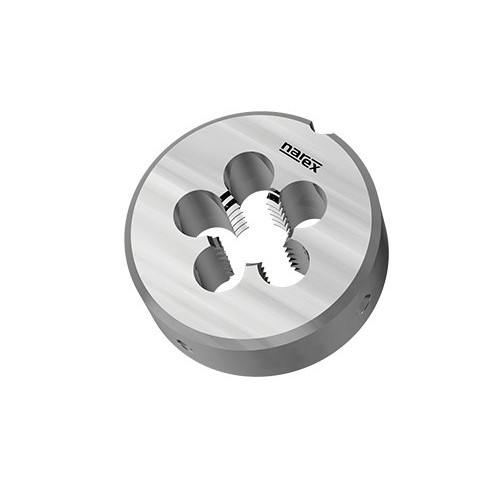

| Tool Type | Circular screwing dies | Pitch in mm | 0.4 |
| Thread Size | M2x0.4 | Cutting Edge Material | HSS |
| Thread Standard | DIN 13 | Measurement Type | Metric |
| Threads per Inch (TPI) | 63.5 | Chamfer | 1.5 pitch with spiral point |
| Outer Diameter | 16 mm | Standard | DIN EN 22 568 |
| Overall Length (OAL) | 5 mm | Flute Count (NOF) | - |
| Applicable Material | | Structural steels | Plain cast steels | Free cutting steels | Aluminium alloys | Copper alloys | Zinc alloys | Spheroidal and Malleable cast iron | Gray cast iron | | Unit | M |
